Lithium Battery Die Cut Mylar Electrical Fish Paper D25.85 Insulation
Product Details:
| Place of Origin: | China |
| Brand Name: | BOALV |
| Certification: | E93687 |
| Model Number: | 0.1-0.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | USD100 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE bags+carton box |
| Delivery Time: | 8 working days |
| Payment Terms: | Paypal, T/T |
| Supply Ability: | 31,200,000 pcs/month |
|
Detail Information |
|||
| Color: | Navy Color; Cyan | Material: | PET PC PP PVC |
|---|---|---|---|
| Square Mould: | Up To 1200mm | Thickness: | 0.3 Mm |
| Highlight: | D25.85 Die Cut Mylar,Fish Paper Die Cut Mylar,Mylar Electrical Fish Paper |
||
Product Description
D25.85 Fishpaper Die Cut Mylar For Insulation Both Sides Lithium Battery Or Motor

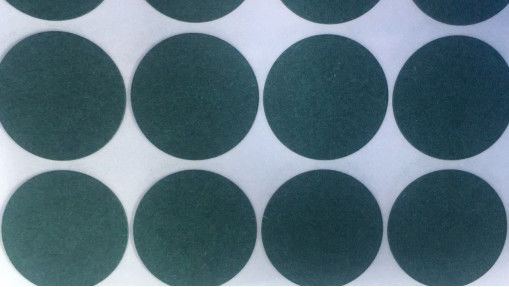

Dimension: D25.85*0.3mm
The products in this category are made of wood pulp or paper pulp. Main substances are cotton fiber, so they are good for environmental protection. Yet they have good property of isolation, light weight, mechanical strength, resisting electric arc, oil and heat. Some can withstand 120℃. Some fire-retardant products pass UL-V0 test.
These mylars, often combine with double-sided adhesive tape, stick to somewhere needed to insulate. Or use screw to fix via small holes in it.
Basic mylar properties:
| No. | Item | requirement | test data |
| 1 | thickness | 0.1-0.5mm | ±0.2 |
| 2 | density g/cm3 | 1.3-1.5 | 1.32 |
| 3 | tensile strength | ≥44 | 50.6 |
| 4 | ball-fall breakage % | no break | no break |
| 5 | Vicat softening point | ≥55℃ | 60℃ |

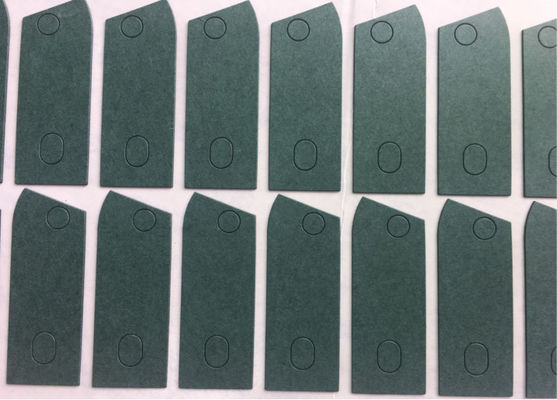

Usage example
Want to Know more details about this product
