Product Details:
|
| Material: | EPDM, SI, NBR, EPE | Density: | 12-25 Kg / Metric Meter |
|---|---|---|---|
| Kinds: | Rubber, Plastics. | Common Property: | Elasticity |
| Highlight: | Close Cell Shockproof Foam,Sealing Shockproof Foam,elastic epdm closed cell sponge |
||

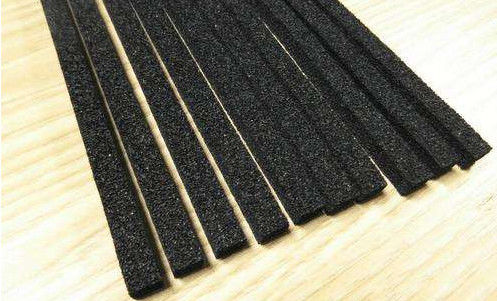

Close cell and open cell EPDM sponge sealing foam
Force always acts on articles in any circumsance, and possibly damages them. In order to reduce the influence of external force, these shock-proof types of material are introduced in. What's more, these sponges have excellent weatherability, temperature endurance, aging resistance and damping-sealing.
| material type | density | C type hardness | tensile strenghth | break elongation | Remarks | |
| kg/m3 | o | kpa | % | |||
| NBR/PVC | JB-2108 | 75±20 | - | ≧120 | ≧120 | some reach to ULV-0 |
| JK-1105 | 70±15 | - | ≧120 | ≧120 | UL HF-1 | |
| CR-T(2016) | 160±30 | 20±5 | ≧1000 | ≧100 | UL HF-1 | |
| EPDM | EB-2015 | 140±30 | 15±5 | ≧200 | ≧150 | |
| EB-2015 grey | 120±20 | 12±5 | ≧200 | ≧150 | ||
| EB-2015N | 120±20 | 15±5 | ≧200 | ≧150 | UL HBF | |
| EB-2025 | 150±30 | 30±5 | ≧500 | ≧150 | ||
| EK-1108 | 80±20 | - | ≧50 | ≧120 | ||
| EOP130 | 80±15 | - | ≧30 | ≧100 | ||
| EOP131 white | 70±15 | - | ≧30 | ≧100 | ||
| EOP131 grey | 70±15 | - | ≧30 | ≧100 | ||
| EOP130NNN | 75±15 | - | ≧30 | ≧100 | UL HF-1 | |
| EOP090 | 110±15 | - | ≧80 | ≧100 | ||
| EK-1208 | 90±20 | - | ≧50 | ≧120 | UL HF-1,DIN5510 | |
| CR | CR-100NN | 170±20 | 10±5 | ≧200 | ≧150 | |
| CR-150NN | 200±20 | 15±5 | ≧250 | ≧120 | ||
| CR-250NN | 180±20 | 25±5 | ≧450 | ≧150 | UL HF-1, DIN5510 | |
| CR-350NN | 240±30 | 35±5 | ≧700 | ≧150 | ||
![]()
